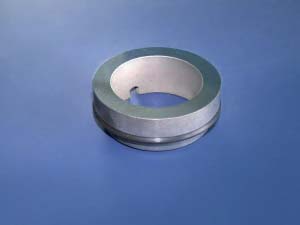

W GG9
Einsatzgrenzen:
D1: 10 - 100 mm
P1: 12 (16) bar
T: -20 - +170°C
Vg: 10 m/s
Gleitflächen:
W1: CrNiMo + Cr2O3
G: Cr - Stahl
U1: WC
Q1: SiSiC
V: Al - Oxid
B: Kohle K
Nebendichtungen: FPM, NBR, EPDM
Gegenringe:
Der Gegenring GG9 kann je nach Einbausituation und Pumpe mit verschiedenen Gleitringdichtungen kombiniert werden
W GG9

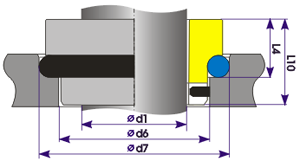

| d1 | d7 | L4 | d6 | L10 |
|
10 |
21,0 |
10,0 |
17,0 |
17,5 |
|
12 |
23,0 |
10,0 |
19,0 |
17,5 |
|
14 |
25,0 |
10,0 |
21,0 |
17,5 |
|
16 |
27,0 |
10,0 |
23,0 |
17,5 |
|
18 |
33,0 |
11,5 |
27,0 |
19,5 |
|
20 |
35,0 |
11,5 |
29,0 |
19,5 |
|
22 |
37,0 |
11,5 |
31,0 |
19,5 |
|
24 |
39,0 |
11,5 |
33,0 |
19,5 |
|
25 |
40,0 |
11,5 |
34,0 |
19,5 |
|
28 |
43,0 |
11,5 |
37,0 |
19,5 |
|
30 |
45,0 |
11,5 |
39,0 |
19,5 |
|
32 |
48,0 |
11,5 |
42,0 |
19,5 |
|
33 |
48,0 |
11,5 |
42,0 |
19,5 |
|
35 |
50,0 |
11,5 |
44,0 |
19,5 |
|
38 |
56,0 |
14,0 |
49,0 |
22,0 |
|
40 |
58,0 |
14,0 |
51,0 |
22,0 |
|
43 |
61,0 |
14,0 |
54,0 |
22,0 |
|
45 |
63,0 |
14,0 |
56,0 |
22,0 |
|
48 |
66,0 |
14,0 |
59,0 |
22,0 |
|
50 |
70,0 |
15,0 |
62,0 |
23,0 |
|
53 |
73,0 |
15,0 |
65,0 |
23,0 |
|
55 |
75,0 |
15,0 |
67,0 |
23,0 |
|
58 |
78,0 |
15,0 |
70,0 |
23,0 |
|
60 |
80,0 |
15,0 |
72,0 |
23,0 |
|
65 |
85,0 |
15,0 |
77,0 |
23,0 |
|
68 |
90,0 |
18,0 |
81,0 |
26,0 |
|
70 |
92,0 |
18,0 |
83,0 |
26,0 |
|
75 |
97,0 |
18,0 |
88,0 |
26,0 |
|
80 |
105,0 |
18,2 |
95,0 |
26,6 |
|
85 |
110,0 |
18,2 |
100,0 |
26,2 |
|
90 |
115,0 |
18,2 |
105,0 |
26,2 |
|
95 |
120,0 |
17,2 |
110,0 |
25,2 |
